CO2 Cartridge Specifications & Technical Data Sheet
Explore detailed specifications and shipping information for Alizeemetal’s full range of CO2 cartridges, designed for outdoor sports, beverage carbonation, tactical shooting, life-saving equipment, and cleaning tools.
OEM and private label customization available. Fast global production and worldwide delivery since 2008.
Quick Access:
CO2 Cartridge Technical Specifications Overview
- gas capacity
- internal pressure
- burst pressure
- piercing force
- neck type
- wall thickness
- thread standards
- dimensional tolerances
- manufacturing process
- leak testing standards
Common CO2 Cartridges Explained (Usage, Compatibility & Specs)
A Detailed Comparison of Our Most Frequently Ordered CO2 Cartridges
💡 Note:
To make viewing easier (especially on mobile 📱), we’ve adjusted the layout for vertical scrolling.
Hope this format helps you compare CO2 cartridges more comfortably! ❤️
| Specification | 1 ml (≈1g) | 12g | 20g | 33g | 45g | 74g |
|---|---|---|---|---|---|---|
|
Gas volume |
1 g ±0.5 |
12 g (+0.5/–1.5) |
20 g ±1 |
33 g ±1.5 |
45 g (+3/–2) |
74 g (+3/–2) |
|
Water volume (Min) |
1.52 ml |
15.5 ml |
25 ml |
48 ml |
65 ml |
95 ml |
|
Filling density(Max) |
≤0.2 kg/L |
≤0.7 kg/L |
≤0.7 kg/L |
≤0.7 kg/L |
≤0.7 kg/L |
≤0.7 kg/L |
|
Operating Temperature Range |
-20°C ~ +65°C |
-20°C ~ +65°C |
-20°C ~ +65°C |
-20°C ~ +65°C |
-20°C ~ +65°C |
-20°C ~ +65°C |
|
Internal Pressure at 65°C |
≤6 MPa |
≤17 MPa |
≤17 MPa |
≤17 MPa |
≤17 MPa |
≤17 MPa |
|
Test Pressure |
15 MPa |
18 MPa |
18 MPa |
18 MPa |
18 MPa |
18 MPa |
|
Burst Pressure |
≥30 MPa |
≥56 MPa |
≥56 MPa |
≥56 MPa |
≥56 MPa |
≥56 MPa |
|
Piercing force |
≤200 N |
≤300 N |
≤300 N |
≤300 N |
≤300 N |
≤300 N |
|
Piercing Torque |
≤0.29 Nm |
≤0.43 Nm |
≤0.43 Nm |
≤0.43 Nm |
≤0.43 Nm |
≤0.43 Nm |
|
Normal Working Pressure |
Approx. 800 psi |
Approx. 800–1000 psi |
Approx. 800–1000 psi |
Approx. 800–1000 psi |
Approx. 800–1000 psi |
Approx. 800–1000 psi |
|
Cylinder Material |
EN10139 DC04 |
EN10139 DC04 |
EN10139 DC04 |
EN10139 DC04 |
EN10139 DC04 |
EN10139 DC04 |
|
Forming Process |
Deep Drawing |
Deep Drawing |
Deep Drawing |
Deep Drawing |
Deep Drawing |
Deep Drawing |
|
Sealing Process |
Resistance pinch welding under pressure |
Resistance pinch welding under pressure |
Resistance pinch welding under pressure |
Resistance pinch welding under pressure |
Resistance pinch welding under pressure |
Resistance pinch welding under pressure |
|
Surface Treatment |
Zinc Plated |
Zinc Plated |
Zinc Plated |
Zinc Plated |
Zinc Plated |
Zinc Plated |
|
Gas Leakage Test |
100% Leak Tested |
100% Leak Tested |
100% Leak Tested |
100% Leak Tested |
100% Leak Tested |
100% Leak Tested |
|
Gas Purity |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
|
Diameter |
Ø9.52 ±0.3 mm |
Ø18.2 ±0.3 mm |
Ø22 ±0.3 mm |
Ø25.4 ±0.3 mm |
Ø30 ±0.5 mm |
Ø40 ±0.8 mm |
|
Overall Height |
25.40 ±0.5 mm |
83 ±0.5 mm |
100 ±1 mm |
133 ±1 mm |
139 ±2 mm |
149 ±2 mm |
|
Neck / Opening |
Plain Neck |
Ø7.2 ±0.2 mm |
Ø8.3 ±0.1 mm |
1/2 inch Neck |
3/8-24 UNF |
5/8-18 UNF |
|
Wall Thickness |
— |
≥0.9–1.0 mm |
≥1.0 mm |
≥1.3 mm |
≥1.3 mm |
≥1.8 mm |
|
Thread Type |
Non-threaded |
Non-threaded |
Non-threaded |
Non-threaded |
Threaded |
Threaded |
What Does Burst Pressure Mean?
Burst pressure is the pressure level where a cartridge will rupture. A higher burst pressure means a larger safety margin during storage and use.
Why Is Wall Thickness Important for CO2 Cartridges?
Wall thickness affects strength, pressure resistance, and safety. Larger CO2 cartridges usually require thicker walls to handle higher gas volume and pressure.
Why Do Different Cartridges Use Different Neck Types?
Different neck sizes are designed for different applications and puncture systems. This helps ensure proper sealing, compatibility, and safe gas release.
Why Are 45g and 74g Cartridges Threaded?
45g and 74g cartridges use threaded necks because larger cartridges need a more secure connection to handle higher gas volume and stronger operating pressure.

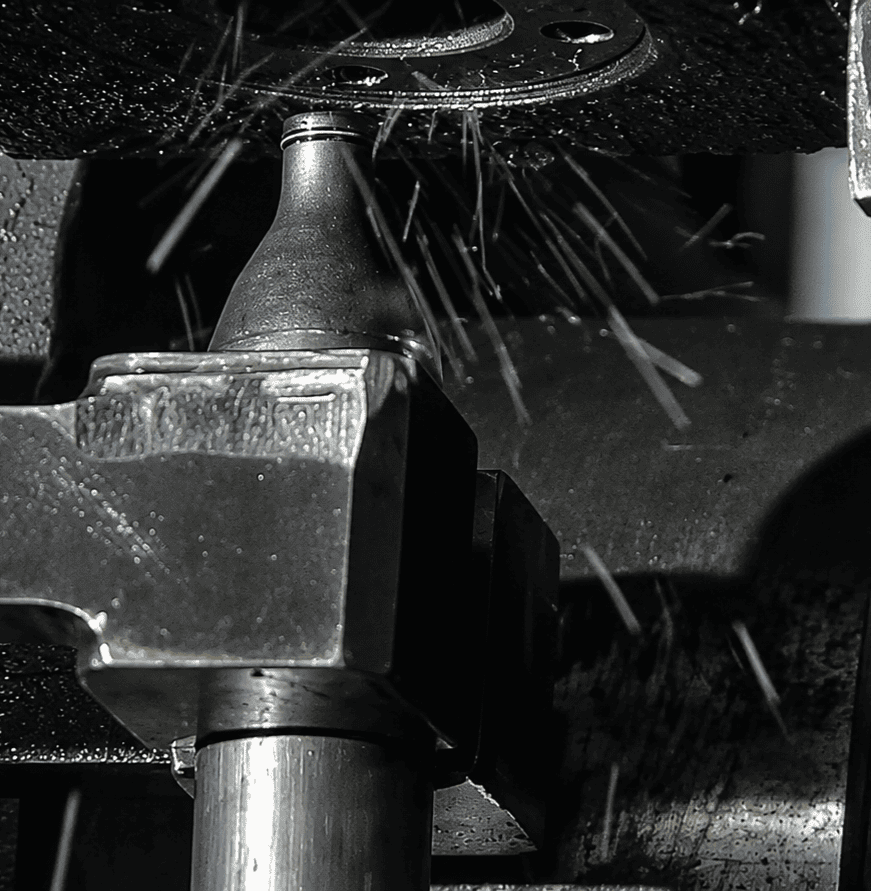

Manufacturing & Quality Control
Manufacturing Process
- Deep drawing forming
- Resistance pinch welding
- Zinc plated surface treatment
- 100% leak testing
- Hydrostatic pressure testing
- Gas purity control
Quality Assurance
Every cartridge is manufactured under strict production and inspection standards to ensure stable pressure performance, sealing reliability, and export-grade quality consistency.
FAQs
What Is the Standard Pressure of a 12g CO2 Cartridge?
A standard 12g CO2 cartridge typically operates at around 800–1000 psi at room temperature.
Are 74g CO2 Cartridges Threaded?
Yes. Most 74g CO2 cartridges use threaded necks for secure installation and safe high-pressure connection.
What Steel Material Is Used for CO2 Cartridges?
Most steel CO2 cartridges are made from deep drawing carbon steel such as EN10139 DC04 for strength and pressure resistance.
What Applications Use 33g and 45g CO2 Cartridges?
33g and 45g CO2 cartridges are commonly used for inflatable life jackets, marine safety equipment, and industrial inflator systems.
Why Is Burst Pressure Important for CO2 Cartridges?
Burst pressure shows the maximum pressure a cartridge can withstand before rupture. Higher burst pressure means better safety margins.
What Is the Difference Between Threaded and Non-Threaded CO2 Cartridges?
Threaded cartridges provide a more secure connection for larger or high-pressure applications, while non-threaded cartridges are common in smaller disposable systems.
Why Do Larger CO2 Cartridges Require Thicker Walls?
Larger cartridges contain more compressed gas, so thicker walls are needed to maintain strength, pressure stability, and safety.
